BMX Handlebar Geometry Explained

January 24, 2018

Brant Moore takes a look at BMX Handlebar Geometry for his latest video…

A while back, we put together a BMX Handlebar Geometry Guide that helps give you an understanding of what makes up a handlebar from materials to rise, width, backsweep, upsweep, crossbar width, crossbar height and more. If you’re more of a visual learner, then this video Brant Moore put together based off the article is definitely for you. Earthquakes, hurricanes, fires and floods are all scenarios that come to mind when thinking of extreme conditions to survive in, especially if caught out of doors when they occur. Other situations that may require extreme survival gear are war, famine, and wilderness survival. Obviously, you cannot set up an appointment in your day planner for when these events will occur. But what you can do is arm yourself with the proper knowledge and correct survival gear that in the event these disasters may happen, you will be as ready as possible. Hit play and take it all in!

“Next in the EXPLAINED series we have BMX handlebars.
BMX handlebars aren’t quite as complicated as frames, but there are still several aspects to be explained.”

Shout out to BMX Union and their handlebar write up for most of the information from this video! — BMX Handlebar Geometry

Flybikes – Sergio Layos Signature Sierra Line

January 20, 2018

For 2018, Flybikes worked with Sergio Layos on a brand new signature line that includes the Sierra frame, Sierra bars and Sierra Tripod Seat. Let’s take a closer look!

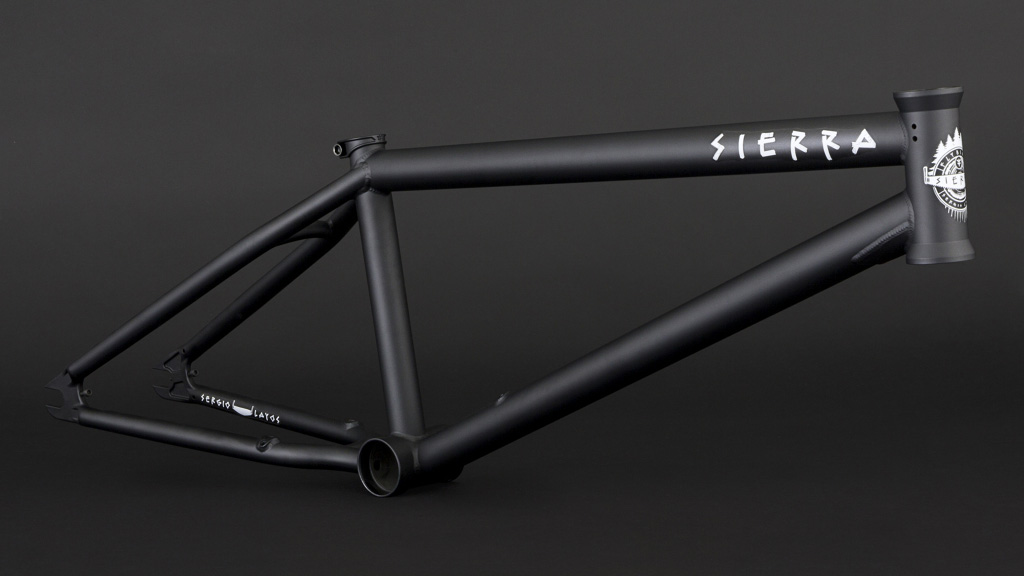

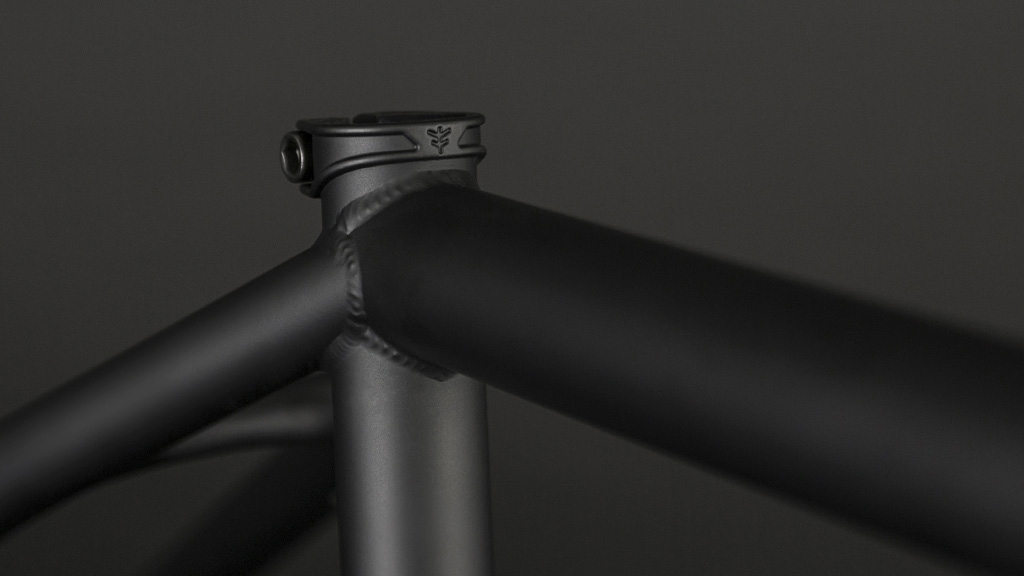

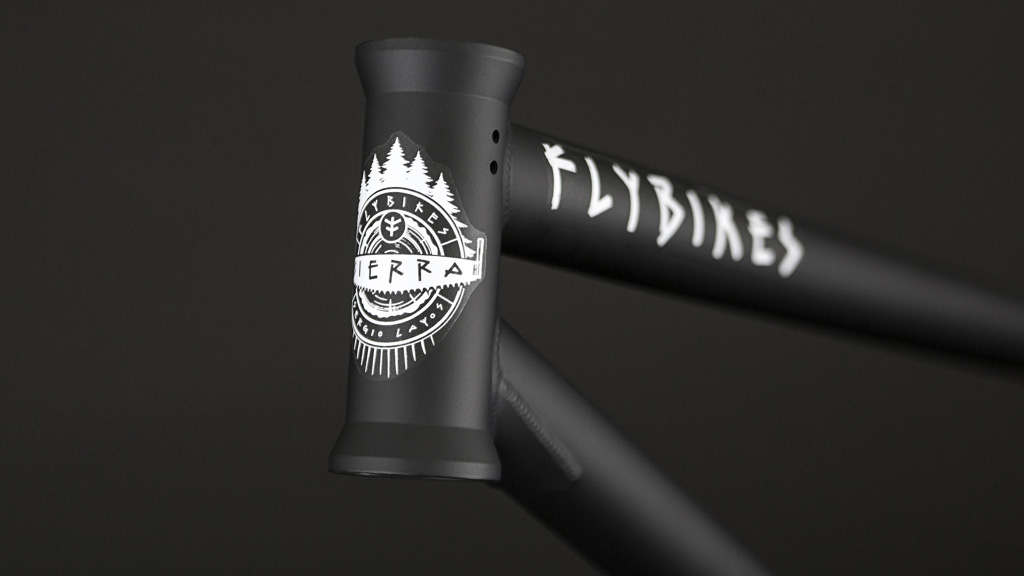

Flybikes Sierra Frame

Anyone who kept up with BMX in 2017 knows that Sergio Layos had one hell of a year riding at events like the Vans BMX Pro Cup and more. Flybikes and Sergio decided it was time to revamp his signature Trueno line with some modernized design and adjustments to the geometry. First up, let’s take a look at the brand new Sergio Layos signature Sierra frame. This BMX frame is made from 100% Japanese Seamless 4130 chromoly tubing with a 75-degree head tube angle, 71-degree seat tube angle, 11.75″ bottom bracket height, 8.75″ standover height and a 13.6″ chainstay length. The Sierra frame starts out with an offset thickness, heat-treated head tube and internal integrated gussets on the top and down tubes, with an external gusset on the top tube for extra strength up front. The top tube and down tube are multi-butted and tapered and the seat tube is multi-butted. The frame also features a 4130 chromoly Investment Cast seat post clamp with the Horizontal Cut System to give you better clamping with less torque on the frame, a heat-treated Mid bottom bracket, curved seat and chainstay bridges for more tire clearance, heat-treated Investment Cast dropouts with integrated chain tensioners and the Easy Brake System removable brake mounts.

The Sierra frame is available in Translucent Copper and Flat Black colors, top tube lengths of 20.6″ and 21″ with a weight of 4.85 lbs. and a $380.00 price tag. The frame is available through BMX shops or on the Flybikes website.

Top tube: 20.6″ / 21″
Head tube: 75º
Seat tube: 71º
Rear end: 13.6″
Standover: 8.75″
BB height: 11.75″
Headtube Length: 113mm. / 4.45″
Weight 21″: 2.200 kg / 4.85 lb

Flybikes Sierra Bars

Along with the frame, Sergio updated his signature bars. The Sierra bars are made from multi-butted, seamless 4130 chromoly tubing with 8.5″ and 9″ rise options, a 28.5″ width, 12-degrees of backsweep and 2-degrees of upsweep. The bars are available in Flat Black, weigh in at 1.6 lbs. and a price tag of $75.00. The Sierra bars are available through Flybikes dealers worldwide now or on the Flybikes website.

Flybikes Sierra Tripod Seat

Last but not least, the new Sergio Layos signature Sierra Tripod seat. The seat, designed for a specific look that Sergio likes has a slim Tripod base (235mm long and 140mm wide) with an ergonomic shape that has 7mm thick padding with a vinyl cover that has a patch on the rear. The Sierra seat comes in Black and Brown color options with a weight of 6.6 oz. and a $35.00 price tag through Flybikes dealers worldwide or on the Flybikes website.
Note: This seat requires a Tripod seat post.

So, that’s a look at the new Sergio Layos signature Sierra frame, bars and Tripod seat from Flybikes! Everything you see above is available now. Do you have any questions? Let us know in the comments below!

Wethepeople BMX – Felix Prangenberg Signature Pathfinder Line

November 15, 2017

Take a look at the new Felix Prangenberg signature Pathfinder frame, bars and sprocket from Wethepeople BMX…

The crew at Wethepeople sent over full details on the new Felix Prangenberg signature Pathfinder frame, bars and fork for you guys to check out. Starting things off, let’s get a look at the Pathfinder frame!

Pathfinder Frame

The Felix Prangenberg signature Pathfinder frame is made from butted, seamless Japanese 4130 chromoly tubing with a 76-degree head tube angle, 71-degree seat tube angle, 11.7″ bottom bracket height and a 12.95″ – 13.5″ chainstay length. The frame features a taller 127mm, CNC machined and heat-treated integrated head tube, gussets on the top and down tubes, an offset thickness Mid bottom bracket shell, integrated seat post clamp, a wide rear triangle with curved stays and bridges for 2.5″ tire clearance, extruded offset thickness and dent resistant chainstays and 6mm thick, CNC machined dropouts. The Pathfinder frame is a brakeless frame and has NO BRAKE MOUNTS.

The Pathfinder frame is available in 20.75″ and 21″ top tube lengths, colors of glossy black ED and translucent Rootbeer with a weight of 5.2 lbs. (2.36 KG / 21″ top tube length) and can be picked up through BMX shops and mail-orders that carry Wethepeople BMX worldwide starting now.

Taller 127mm, CNC machined and heat-treated integrated head tube with external gussets on the top and down tubes.

Offset thickness Mid bottom bracket shell.

Curved stays and bridges for 2.5″ tire clearance and an integrated seat post clamp.

6mm thick, CNC machined dropouts.

Pathfinder Bars

Next up we have the Felix Prangenberg signature Pathfinder bars. These 4-piece bars are made from full liquid post-weld heat-treated 4130 “M2″ chromoly straight gauge tubing. The bars are available in a 9″ and a 9.6″ rise, 29″ width, 11.5” degrees of backsweep and 3-degrees of upsweep. The bars feature an oval cross tube for additional dent resistance and added strength. You can also pick these up in a 25.4mm Oversized size and the standard 22.2mm size. Note: The oversized size requires a stem in the matching size.

The Pathfinder 4-piece bars come in Glossy Black ED only with a weight of 38.8 oz. (2.39 lbs. / 1084 grams) on the 9.6″ rise, 22.2mm size.

Not only do the bars come in 9″ and 9.6″ rise options, they also come in the standard 22.2mm size or an oversized 25.4mm size in the clamping area. The 25.4mm requires a matching sized stem to fit. You can learn more about the 25.4mm size RIGHT HERE.

That’s a look at the Pathfinder bars!

Pathfinder Sprocket

Last but not least, the Pathfinder Sprocket! This sprocket is fully CNC Machined from 6061-T6 alloy with a unique design pattern and an 8mm thickness. This sprocket features a super strong design that has 9 rotation points for a longer life and sunken adaptors that help with chain alignment. The Pathfinder sprocket has a 24mm bore, but includes 19mm and 22mm adaptors to fit all bolt-on style cranks. You can pick this sprocket up in Matte Black or Polished silver in 25-tooth, 26-tooth and 28-tooth sizes with a weight a 3.66 oz. (104 grams) through BMX shops and mail-orders that carry Wethepeople BMX worlwide now.

The Pathfinder sprocket has a 24mm bore, but includes 19mm and 22mm adaptors to fit all bolt-on style cranks.

Available in 25, 26 and 28 tooth sizes in matte black and polished silver.

That’s a look at the full range of Felix Prangenberg’s signature Pathfinder range from Wethepeople BMX. Everything you see is hitting BMX shops and mail-orders that carry Wethepeople worldwide now. We want to know what you guys are thinking! Let us know if you have any questions or thoughts on what you’re seeing! Drop us a line in the comments below!

Proper Bike Co. – Squadron Bars

October 23, 2017

Take a look at the new Squadron Bars from Proper Bike Co….

The crew over at Proper Bike Co. have released their new 4-piece Squadron bars for you to get your hands on. These bars are made from full 4130 chromoly tubing with an 8.60″ rise, 28″ width, 3-degrees of upsweep and 10-degrees of backsweep. They’re available in black only and can be picked up through BMX shops and mail-orders that carry Proper Bike Co. worldwide starting now for £59.99.

Do you have any questions? What do you think? Let us know what you’re thinking in the comments below!

Sneak Peek: Eclat BMX – Jordan Godwin Signature Chocolate Bars

October 10, 2017

It looks like Jordan Godwin will have a new set of signature BMX Bars hitting BMX shops and mail-orders next month! Here’s a sneak peek look at the Eclat Chocolate Bars that have a 9″ rise, 27.5″ width and utilize the new oversize 25.4mm bars and the standard 22.2mm size for those of you who want to stick to the traditional size. Check out the video below to get the full details.

“As part of MANIFESTO WEEK, Jordan Godwin gives you a first look at his new signature Chocolate Bar which will be available next month from your local BMX shop or mailorder in 22.2mm and OVERSIZE 25.4mm clamping.

The 2018 Eclat Parts line will be available from bike shops worldwide November 2017. For more info make sure you head to our website or search “ECLATBMX”” – Eclat

Colony BMX – Prody Kue Bars

October 7, 2017

Colony are going old school with their new Prody Kue Bars…

Photos: Vancho Bike

Thinking about picking up a new set of BMX Bars, but you want something a little more unique than everything else that’s available? Colony‘s new Prody Kue Bars might just be what you’re looking for, especially if you’re a fan of the old school look. These full 4130 chromoly 4 (5-piece) bars have an 8.5″ rise, 28″ width, 17-degrees of backsweep and 8-degrees of upsweep. The bars weigh in at 36.61 oz.

The bars are based off the classic Peregrine Q Bars that featured the same look with the extra cross bar, so that is why they probably look familiar to a few of you older guys out there!

The Prody Kue bars from Colony are hitting BMX shops and mail-orders now and come in black and chrome color options. Keep an eye out for them here soon!

A post shared by @colonyvw on Oct 6, 2017 at 2:55pm PDT

Kink BMX – Gold Parts Colorway

August 29, 2017

If you’re feeling like you need some gold in your life, Kink have you covered!

Kink have released their Foundation 2 Fork, Pillar Cranks and Solace 2 Bars in this new metallic gold colorway that looks real shiny and nice. If you’re digging the color and want to add some shine to your bike, this might just be what you need. The fork, cranks and bars are available through BMX shops and mail-orders that carry Kink BMX worldwide now.

The Pillar Cranks in this new gold colorway.

The Tony Hamlin signature Solace 2 Bars also come in this new gold color!

What do you think? Do you have any questions? Let us know what you’re thinking in the comments below!

Mutiny Bikes – Jeff Wescott 2017 Comb Line Promo

June 26, 2017

Mutiny Bikes just dropped a fresh promo video for the Jeff Wescott signature Comb Frame and Bars. This video is pretty short and sweet, but it’s loaded with some really solid clips that bring plenty of style and creativity to the table. After you watch the video, we have full specs and details on the Comb line below! Take a look!

Mutiny Bikes – 2017 Comb Frame

The 2017 Comb frame is made from 100% 4130 Sanko Chromoly tubing with a 74.9-degree head tube angle, 71-degree seat tube angle, 11.8″ bottom bracket height, 9″ standover height and a 13.2″ (slammed) chainstay length. The frame features a 125mm tall, 420 Baked heat-treated, offset thickness, Integrated head tube, top and down tube gussets, an integrated seat post clamp with a horizontal cut for better clamping, a Mid bottom bracket, curved seat and chainstay bridges for 2.40″ tire clearance, removable brake mounts and 6mm thick dropouts with integrated chain tensioners.

The 2017 Comb frame is available in 20.8″, 21.1″ and 21.3″ top tube lengths, translucent orange for the only color and a weight of 5 lbs. flat (20.8″) with a price tag of $330.00. This frame is available through BMX shops and mail-orders that carry Mutiny Bikes worldwide now or direct from the Mutiny Bikes Webstore..

125mm tall, heat-treated, integrated head tube with an offset thickness to help support the welds of the top and down tube gussets.

Curved bridges for additional tire clearance and an integrated seat post clamp with a horizontal cut to improve clamping and reduce torque from the bolt.

Mutiny Bikes – 2017 Comb Bars

The Comb Bars are two-piece bars that are made from 100% heat-treated butted chromoly tubing with a 9.2″ rise, 30″ width, 13-degrees of backsweep and 3-degrees of upsweep. The Comb bars are available in black only with a weight of 30 oz. and a price tag of $70. You can pick these bars up through BMX shops and mail-orders that carry Mutiny Bikes worldwide now or direct from the Mutiny Bikes webstore.

What do you think of the Comb line? Let us know what you in think or if you have any questions in the comments below!
